PIXMAM-3D is a routine image quality phantom for testing of digital breast tomosynthesis mammography systems.

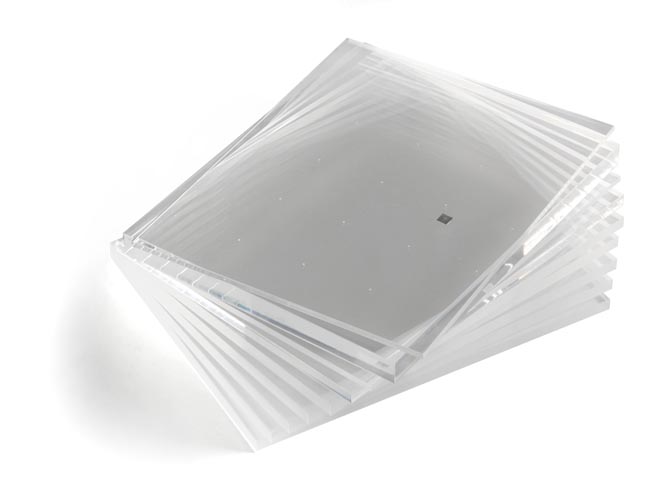

PIXMAM-3D comprises:

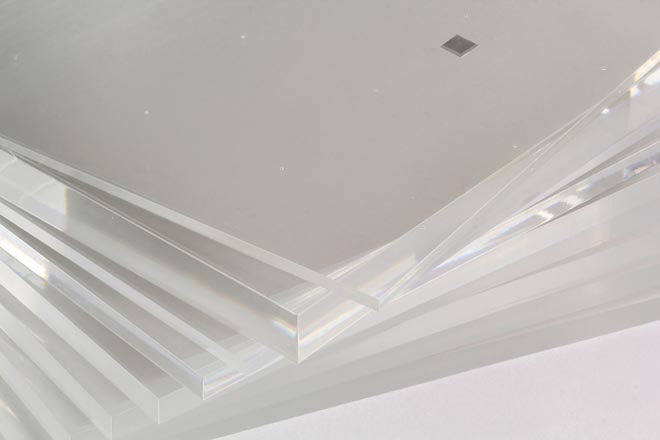

- (1pc)300 x 240 x 5mm* plate with 25 embedded spheres (1mm dia.) for Z-resolution (also available separately)
- (1pc)300 x 240 x 20mm* plate with embedded 99.99% Al foil (0.20x10x10mm)
- (1pc)300 x 240 x 5mm* plate
- (1pc)300 x 240 x 10mm* plate
- (2pc)300 x 240 x 20mm* plates
PIXMAM-3D allows the following tests to be conducted:
- AEC checks
- Detector homogeneity
- Geometric distortion
- SNR
- CNR
- Image resolution
- Z-resolution test
* All parts produced to a 1% tolerance thickness
Conforms to standards:
- EUREF Protocol for the Quality Control of the Physical and Technical Aspects of Digital Breast Tomosynthesis Systems
