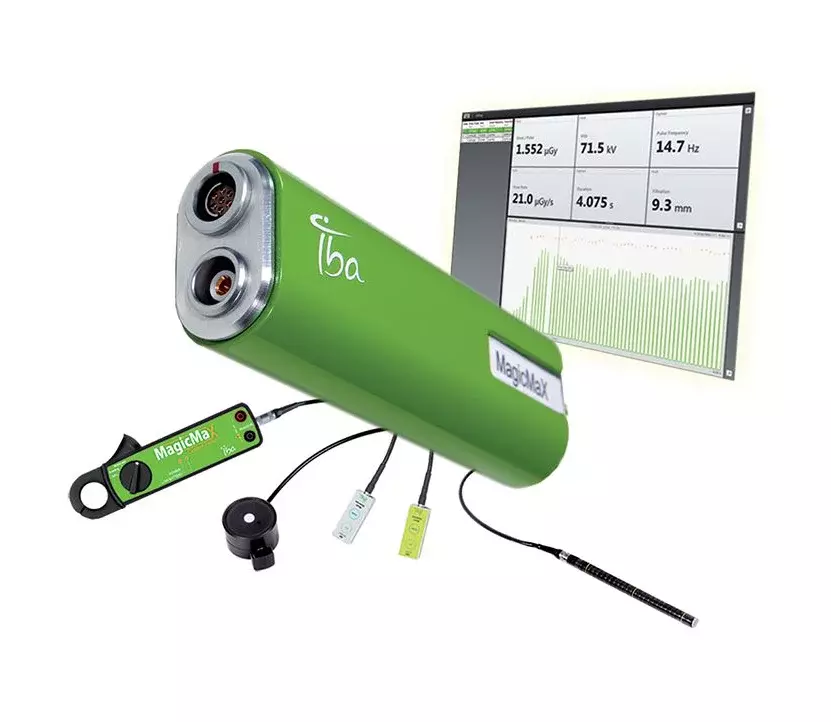

The MagicMaX Universal is your Beam QA solution for radiography/fluoroscopy, mammography, computed tomography, and dental imaging. Its exchangeable detectors and chambers make the MagicMaX Universal quick and easy to set up for different kinds of measurements. Simple Plug & Play installation via USB using a laptop The user-friendly software takes only seconds to set up Readings are clearly displayed on the screen and can also be exported from the software for archiving MagicMaX can be fully integrated into your existing IT infrastructure and there is no need to purchase a separate display
Time saving
Plug and play, 1 minute fast setup
One-shot full QA
Beam & image verification in one x-ray:
micro footprint detector for unobstructed test plate
One solution for all modalities
Radiography / Fluoro / Mammo / CT
Advanced Software
Fast total overview as well as comprehensive expert level
detail and reporting

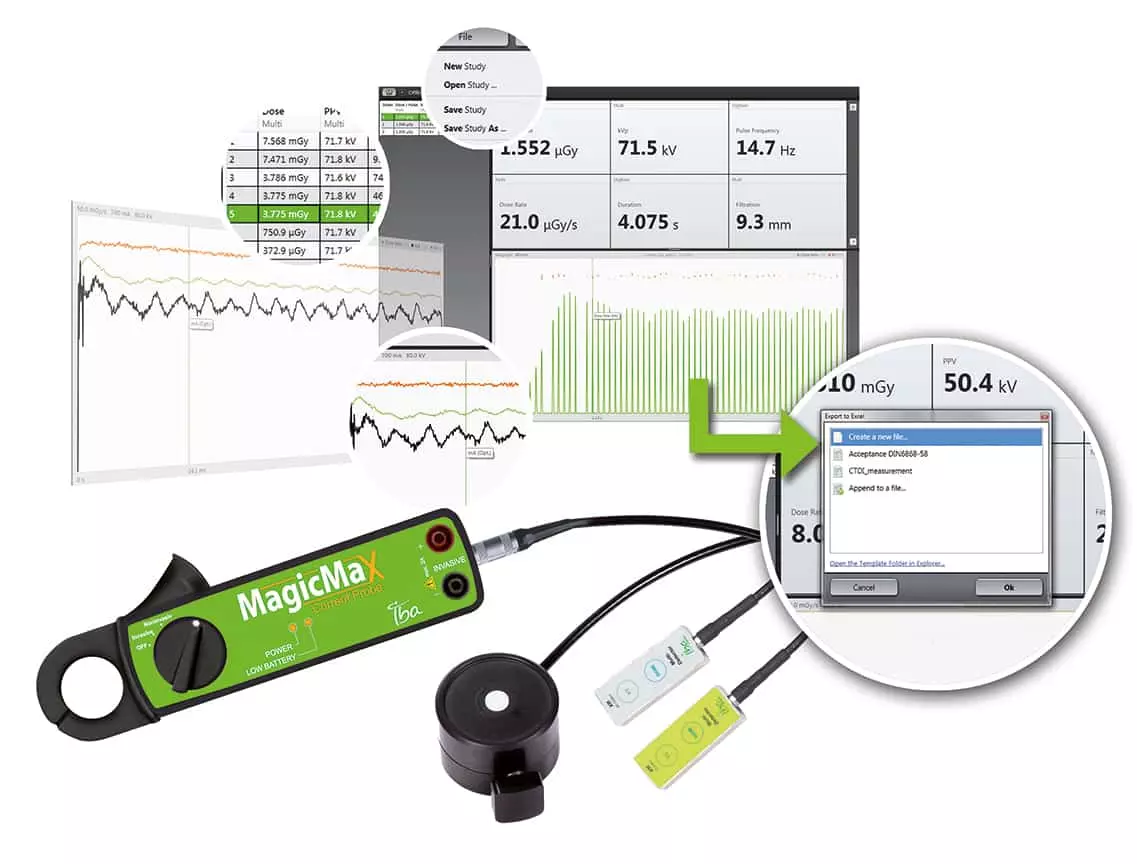

MagicMaX Current Probe
For invasive and non-invasive measurements of the tube current, using MagicMaX Universal Multimeter.
- Altitude: < 2000 m (6561 ft)
- Battery Type: 2x 1.5 V (AA) Conductor
- Size: 23 mm (0.9”)
- Dimensions (L x W x H): 183 mm x 61.3 mm x 35.6 mm; 7.2” x 2.4” x 1.4”
- Low Battery Indicator: LED, red Maximum Current: 2 A
- Measurement Range: 10 mA to 2 A; 0.1 mAs – 1000 As
- Operating Humidity: < 85% (rh without condensation)
- Operating Temperature: +15°C – 35°C
- Storage Humidity: < 75% (rh without condensation)
- Storage Temperature: -20°C – 60°C Weight: 190 g / 0.41 lbs
